Wastewater is intermittent, dirty and full of solids — a combination that clogs or wears out most pumps. The QBY takes it in stride: with no close-fitting parts it passes rags, grit and sludge without…
| Flow Rate | 0-30m³/h |
|---|---|
| Head | 0 – 50 / 70m |
| Inlet / Outlet Diameter | 10 – 100mm |

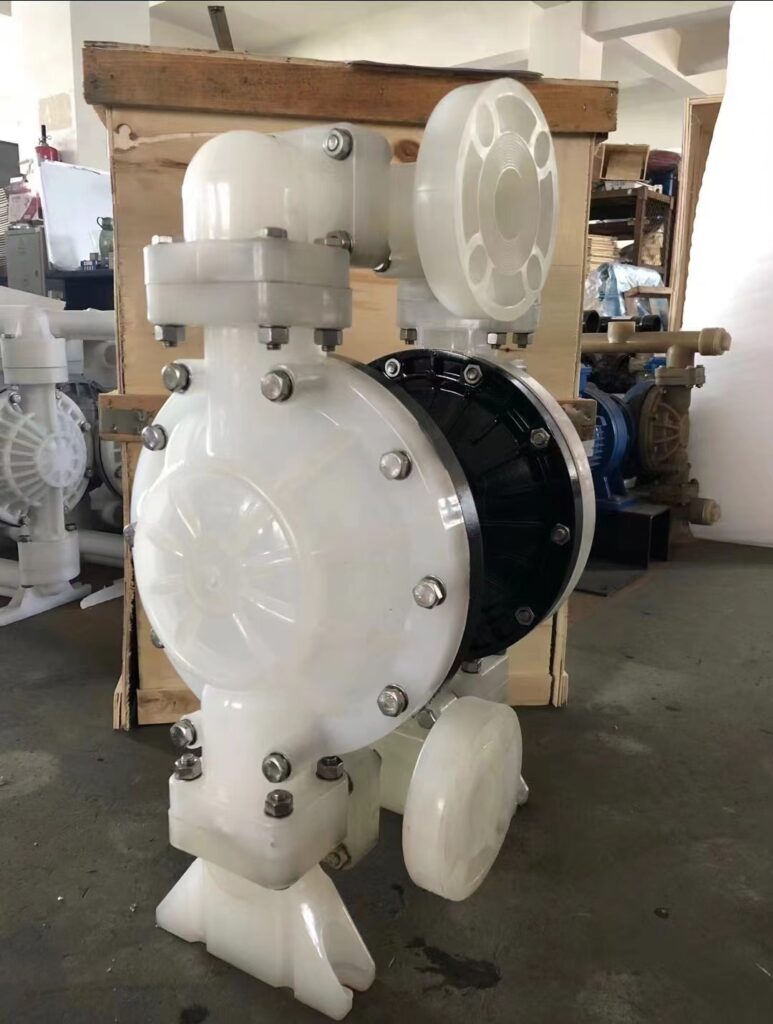

| Material | PP Engineering Plastic, Aluminum Alloy, Cast Iron, Stainless Steel |
Wastewater is intermittent, dirty and full of solids — a combination that clogs or wears out most pumps. The QBY takes it in stride: with no close-fitting parts it passes rags, grit and sludge without jamming, self-primes from a dry sump, and can work fully submerged in the pit.
It is equally at home cleaning tank trucks and barges, recovering oily water, and emptying sludge pits — anywhere the flow starts and stops and the fluid is anything but clean.
QBY Pneumatic Diaphragm Pump Technical Parameters
| Parameter | Specification Range |
|---|---|
| Flow Rate | 0 – 30 m³/h |
| Max Head | 0 – 50 / 70 m |
| Port Size (Caliber) | 10 – 100 mm |
| Working Temperature | -15℃ ~ +150℃ |
| Working Air Pressure | 0.1 – 0.7 MPa |
| Self-Priming Height | 5 – 7 m |
| Max Passable Solid Particle | 10 mm |
Applications: sewage and effluent, sludge-pit cleaning, oily-water recovery, industrial wastewater, tank-truck and barge cleaning, sump drainage
HAQUANPUMP builds the full QBY range in-house. Send us your fluid, flow and head, and we will recommend the exact model, body material and diaphragm for the job.
