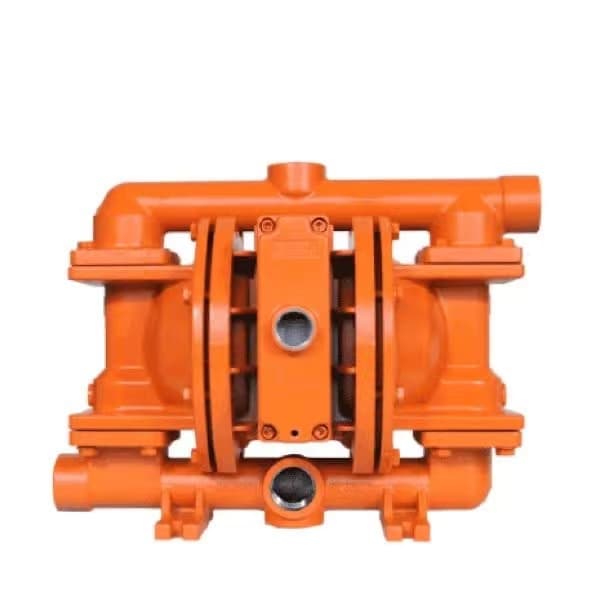

Model: WILDEN XP2 (Pro-Flo, clamped) / XP220 (Pro-Flo FIT, bolted)
Genuine WILDEN XP2 (clamped) and XP220 (bolted FIT), 1″ aluminum pumps with a conductive polypropylene air side. How the two compare.
| Flow Rate | Up to 44 gpm / 167 L/min (10.0 m³/h) |
|---|---|
| Head | Max air pressure 120 psi / 8.3 bar |
| Power | Compressed air, max 8.3 bar (120 psi) |
| Inlet / Outlet Diameter | 1" inlet / 1" outlet, NPT, center ports |
| Material | Aluminum wetted path, conductive polypropylene air side; PTFE or EPDM diaphragms |
The XP2 and the XP220 share one feature that sets them apart from the P2 and P220: PSG lists their air side as conductive polypropylene. A conductive air side lets static charge drain away through the pump, which matters on sites that handle solvents or fuels. If your site has hazardous-area requirements, tell us which ones, and we will confirm the right build with you.
The main difference between the two is how the pump is held together.
| XP2 (02-13459) | XP220 (02-13214) | |
| Construction | Clamped | Bolted |
| Diaphragm | PTFE, full stroke | PTFE, reduced stroke |
| Max flow | 44 gpm (167 L/min) | 44 gpm (167 L/min) |
| Dry suction lift | 15.3 ft (4.7 m) | 11.4 ft (3.5 m) |
| Max solids | 0.13 in (3.3 mm) | 0.25 in (6.3 mm) |
| Shipping weight | 21 lb (9.5 kg) | 30 lb (13.6 kg) |
The bolted XP220 passes larger solids, while the clamped XP2 lifts better and weighs less. PSG lists only one aluminum XP2 build and four XP220 builds, so these pumps are usually ordered as exact replacements. Quote the full nameplate code when you ask us.
| Part No. | Build code | Elastomer | Connection |
| 02-13459 | XP2/AAJJJ/TWS/TF/ATF/2000 | PTFE | Threaded |
| 02-13064 | XP220/AAJJJ/EPS/EP/AEP/0677 | EPDM | Threaded |
The 5 aluminum XP2 and XP220 builds are listed here: https://www.haquanpump.com/wilden-aodd-pumps/part-numbers?q=XP2 | https://www.haquanpump.com/wilden-aodd-pumps/part-numbers?q=XP220
