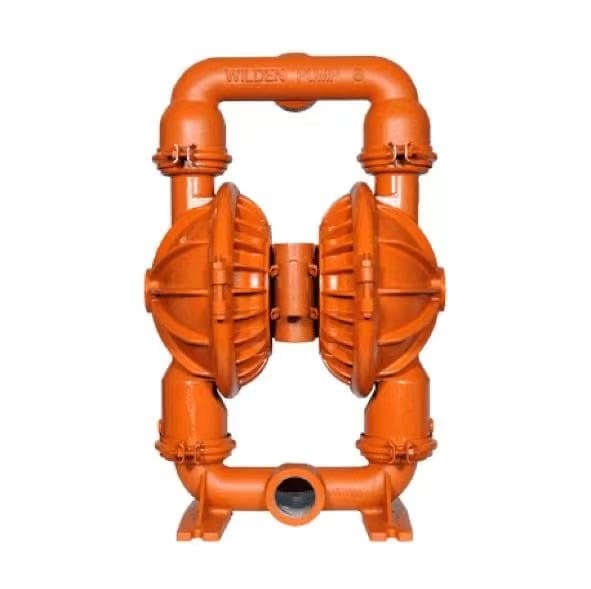

Model: WILDEN P820 / P830 (Pro-Flo FIT, bolted) / PS8 (Pro-Flo SHIFT, clamped)
Genuine WILDEN 2″ aluminum pumps compared: P820 threaded and P830 flanged Pro-Flo FIT (161 gpm), and the clamped PS8 Pro-Flo SHIFT (185 gpm).
| Flow Rate | P820/P830 up to 161 gpm / 609 L/min; PS8 up to 185 gpm / 700 L/min |
|---|---|
| Head | Max air pressure 125 psi / 8.6 bar |
| Power | Compressed air, max 8.6 bar (125 psi) |
| Inlet / Outlet Diameter | 2" inlet / 2" outlet; P820 and PS8 NPT threaded, P830 ANSI flanged |
| Material | Aluminum wetted path, polypropylene air side; FKM, Buna-N, Neoprene, Hytrel, Santoprene, EPDM or PTFE diaphragms |
Outside the P8 and XPS8 families covered in our other articles, there are three more 2 inch aluminum options. Here they are side by side, using PSG’s published figures.
| P820 | P830 | PS8 | |
| Air system | Pro-Flo FIT | Pro-Flo FIT | Pro-Flo SHIFT |
| Construction | Bolted | Bolted | Clamped |
| Connection | NPT threaded | ANSI flanged | NPT threaded |
| Max flow | 161 gpm (609 L/min) | 161 gpm (609 L/min) | 185 gpm (700 L/min) |
| Dry suction lift | 24.3 ft (7.4 m) | 24.3 ft (7.4 m) | 23.8 ft (7.3 m) |
| Shipping weight | 93 to 104 lb (42.2 to 47.2 kg) | 111 lb (50.3 kg) | 78 lb (35.4 kg) |
| Aluminum builds | 11 | 8 | 1 |
P820 and P830 are the same bolted pump with threaded or flanged ports, so choose by your pipework. The PS8 is the odd one out: a clamped SHIFT pump that moves more liquid and is noticeably lighter, but it is a different pump, not a drop-in replacement for either.
All three run on up to 125 psi (8.6 bar) of air. The builds we checked are rated 32 to 175 °F (0 to 79 °C), and the FIT pumps handle solids up to 0.25 inch (6.3 mm). Example builds: 08-15508 (P820, Buna-N), 08-15538 (P830, Buna-N) and 08-16188 (PS8, Buna-N).
| Part No. | Build code | Elastomer | Connection |
| 08-15954 | P830/AAAPP/TEU/TF/ATF | PTFE | Flanged |
| 08-16188 | PS8/AAAPP/BNS/BN/BN | Buna-N | Threaded |
| 08-15606 | P820/AAAPP/VTS/VT/VT | FKM | Threaded |
| 08-15536 | P830/AAAPP/NES/NE/NE | Neoprene | Flanged |
| 08-15776 | P820/AAAPP/ZWS/TF/STF | Santoprene | Threaded |
| 08-15995 | P820/AZAPP/SSL/FS/FS | Hytrel | Threaded |
| 08-15658 | P830/AAAPP/EPS/EP/EP | EPDM | Flanged |
All 20 aluminum P820, P830 and PS8 builds are in our part number lookup: https://www.haquanpump.com/wilden-aodd-pumps/part-numbers?q=P820 | https://www.haquanpump.com/wilden-aodd-pumps/part-numbers?q=P830 | https://www.haquanpump.com/wilden-aodd-pumps/part-numbers?q=PS8
