Model: WILDEN P2 (Pro-Flo, P2 redesign, clamped)
Genuine WILDEN P2, the 1″ Pro-Flo aluminum pump in its redesigned form: 34 builds, 45 gpm, 25 ft dry lift, and the /2000 suffix on the nameplate.
| Flow Rate | Up to 45.2 gpm / 171 L/min (10.3 m³/h) |
|---|---|
| Head | Max air pressure 120 psi / 8.3 bar |
| Power | Compressed air, max 8.3 bar (120 psi) |
| Inlet / Outlet Diameter | 1" inlet / 1" outlet, NPT, center ports |
| Material | Aluminum wetted path, polypropylene air side; Santoprene, PTFE, Buna-N, EPDM, Hytrel, Neoprene or FKM diaphragms |
The P2 is the largest family in Wilden’s aluminum range: PSG lists 34 builds. Almost all of them end in /2000, and that suffix is the first thing to check when you replace a P2.
PSG describes the current pump as the “P2 redesign”. 32 of the 34 aluminum builds carry the /2000 suffix, with one each ending in /2248 and /2250. For example, the nameplate on build 02-12247-R reads P2/AAPPP/WFS/WF/AWF/2000. If your old pump has no suffix, or a different one, send us a photo of the nameplate before ordering parts, so we can confirm which design you have.
| Santoprene build (02-12247-R) | PTFE build (02-13405) | |
| Max flow | 45.2 gpm (171 L/min) | 44 gpm (167 L/min) |
| Dry suction lift | 25 ft (7.6 m) | 15.3 ft (4.7 m) |
| Max solids | 0.13 in (3.3 mm) | 0.13 in (3.3 mm) |
| Temperature | 32 to 175 °F (0 to 79 °C) | 40 to 175 °F (4 to 79 °C) |
| Shipping weight | 20 lb (9.1 kg) | 20 lb (9.1 kg) |
Note the suction lift. The Santoprene build lifts 25 ft dry, one of the best figures in the 1 inch class, while the PTFE build manages 15.3 ft. If the pump has to draw from a drum or a pit below it, the diaphragm choice matters.
Both builds are 1 inch NPT with center ports and a maximum air pressure of 120 psi (8.3 bar). Diaphragms are available in seven materials across the range.
| Part No. | Build code | Elastomer | Connection |
| 02-13405 | P2/AAPPP/TWS/WF/STF/2000 | PTFE | Threaded |
| 02-12826 | P2/AAPPP/BNS/TF/SBN/2000 | Buna-N | Threaded |
| 02-12247-R | P2/AAPPP/WFS/WF/AWF/2000 | Santoprene | Threaded |
| 02-12871 | P2/AAPPP/EPS/EP/AEP/2000 | EPDM | Threaded |
| 02-12551 | P2/AAPPP/FSS/TF/AFS/2000 | Hytrel | Threaded |
| 02-12495 | P2/AAPPP/NES/TF/AEP/2000 | Neoprene | Threaded |
| 02-12490 | P2/AAPPP/VTS/TF/ATF/2000 | FKM | Threaded |
All 34 aluminum P2 builds can be searched in our part number lookup: https://www.haquanpump.com/wilden-aodd-pumps/part-numbers?q=P2
Genuine Wilden AODD Diaphragm Pumps & Spare PartsGenuine WILDEN PS1530, the 3″ bolted Pro-Flo SHIFT FIT aluminum pump with ANSI flanges: 262 gpm (992 L/min), PTFE diaphragm, 20 ft dry lift.

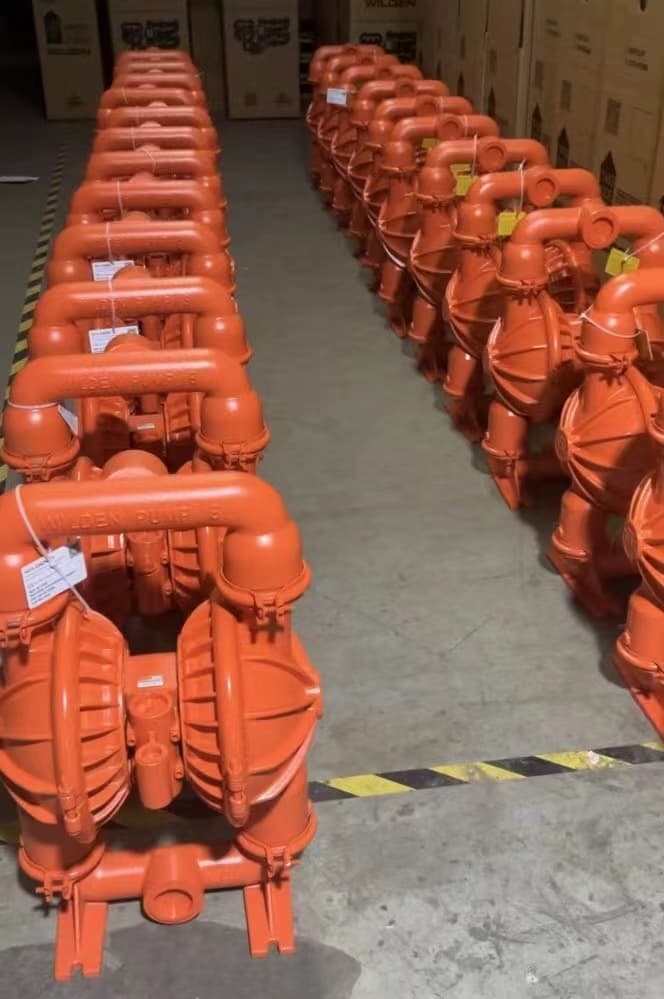

Genuine Wilden AODD Diaphragm Pumps & Spare PartsGenuine WILDEN 2″ aluminum pumps compared: P820 threaded and P830 flanged Pro-Flo FIT (161 gpm), and the clamped PS8 Pro-Flo SHIFT (185 gpm).

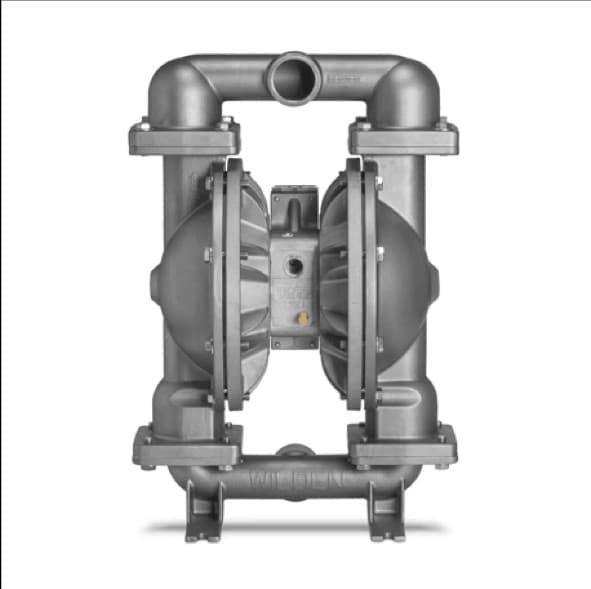

Genuine Wilden AODD Diaphragm Pumps & Spare PartsGenuine WILDEN PS4 (clamped) and PS430 (bolted FIT), both 1-1/2″ Pro-Flo SHIFT aluminum pumps, but not interchangeable. Flow, lift and weight compared.
