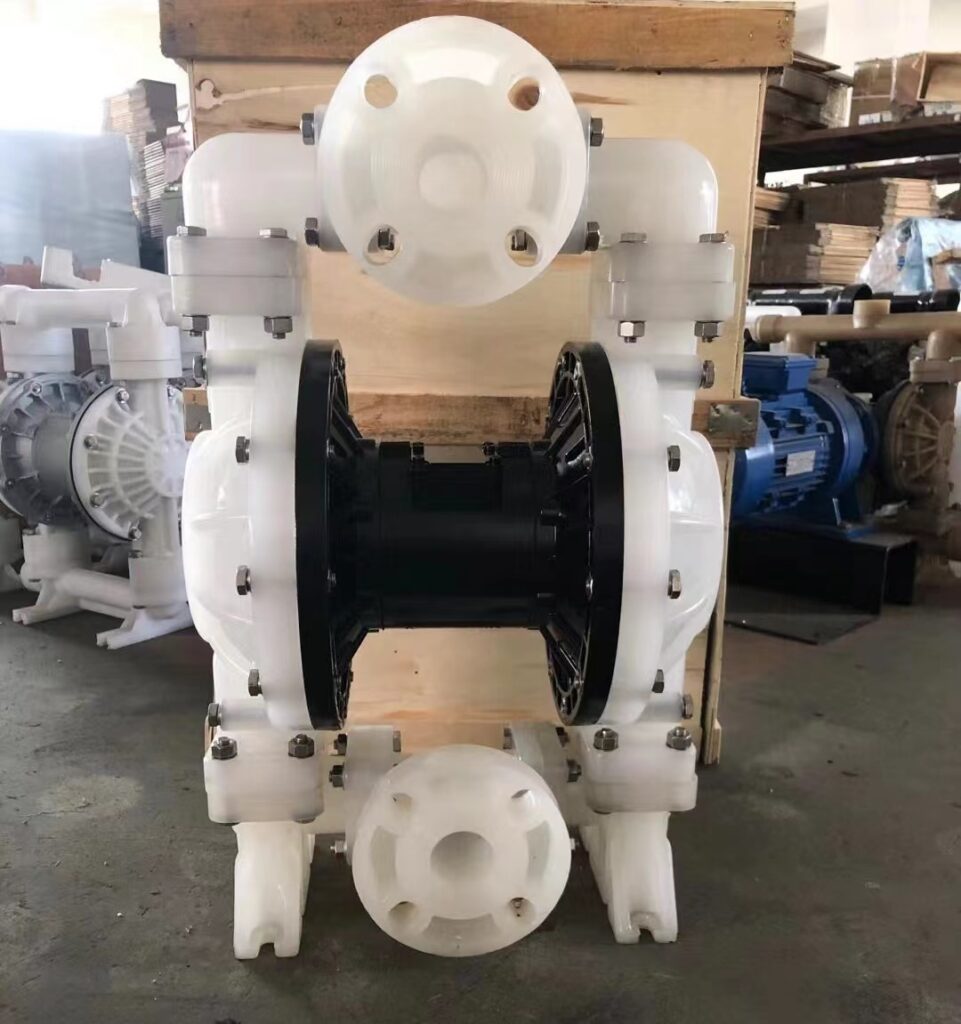

Gentle on Sensitive FormulationsPaint and ink manufacturers love the QBY because it doesn’t shear their products. The gentle diaphragm action moves paint without breaking down pigments or altering vis…
| Flow Rate | 0-30m³/h |
|---|---|
| Head | 0 – 50 / 70m |
| Inlet / Outlet Diameter | 10 – 100mm |
| Material | PP Engineering Plastic, Aluminum Alloy, Cast Iron, Stainless Steel |
Gentle on Sensitive Formulations
Paint and ink manufacturers love the QBY because it doesn’t shear their products. The gentle diaphragm action moves paint without breaking down pigments or altering viscosity.
What It Transfers
•
Automotive paints and primers
•
Printing inks and varnishes
•
Industrial coatings
•
Resins and adhesives
•
Pigment dispersions
•
Thinners and solvents
Material Recommendations
Use stainless steel for solvent-based paints. Polypropylene works for water-based coatings. PTFE diaphragms resist solvent swelling.
Flow Control
The QBY allows precise flow adjustment by air regulation. This is useful for filling lines and spray booth supply.
Applications Summary:
paint transfer, ink pumping, coating circulation, resin handling, adhesive transfer, pigment dispersion, solvent circulation
Thanks for visiting HAQUANPUMP. We offer QBY diaphragm pumps for paint and coating applications. Contact us for material recommendations.
