Submersible Sewage Pumps for Paper Mill Wastewater

Long fibers are among the materials most likely to create trouble inside a wastewater pump. Paper and pulp operations can produce fiber-rich water, making impeller geometry an important selection factor. A pump with a relatively open passage can provide a more practical route for this type of material.

Designed for Long-Fiber Handling

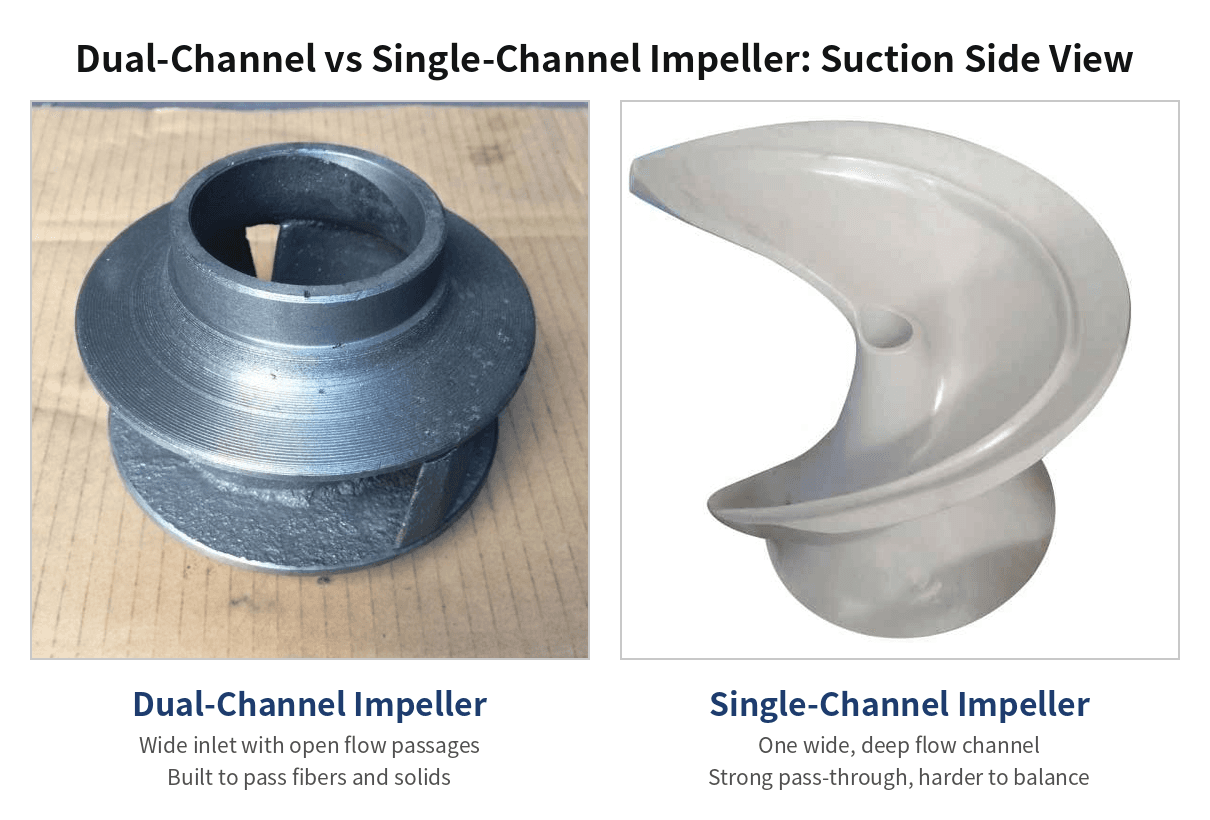

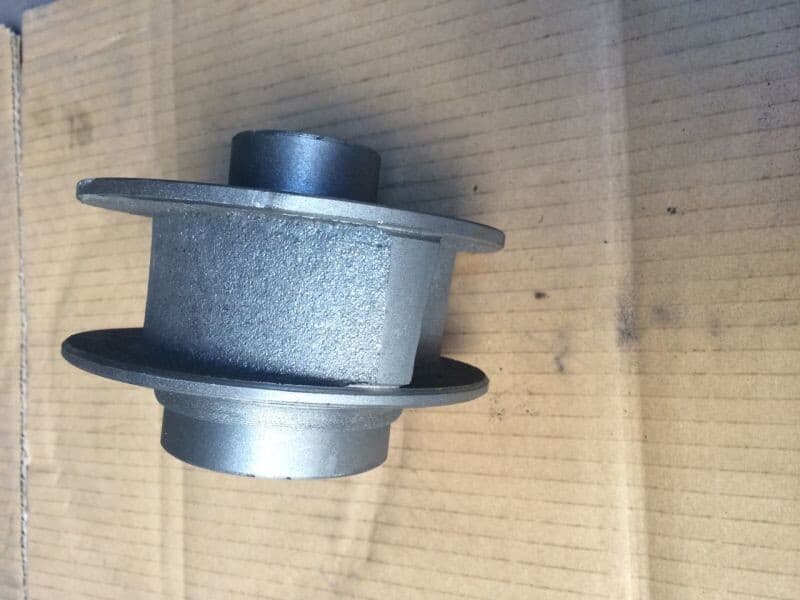

The supplied WQ/QW product information specifically discusses long-fiber handling and lists paper among the application industries. The single-channel or twin-channel impeller has a passage designed to reduce wrapping and blockage. The source material states that the pump can pass fibrous material up to approximately five times the pump passage size, depending on the model.

Still Check the Actual Solids

This does not mean every pump should be selected without checking the actual solids. Fiber length, concentration and the presence of other debris can change the operating conditions. The exact impeller and pump model should therefore be confirmed from the project data.

Mechanical Seals for Continuous Duty

Mechanical seals also need to withstand continuous wastewater service. The referenced pump uses a double mechanical seal arrangement with hard, corrosion-resistant tungsten carbide material. An oil chamber and leakage sensor provide an additional monitoring point between the mechanical seal and motor.

Protection and Maintainability

Paper mills may operate pumping systems continuously, so protection and maintainability are important. Thermal protection in the motor winding can monitor temperature, while a control cabinet can provide overload and electrical fault protection. A fixed guide rail coupling system can make pump removal easier during planned maintenance.

Electrical Supply

If a paper mill project uses 415 V, 50 Hz electrical power, the motor configuration can be customized for that supply. The required motor power should be selected from the actual flow and head, not from voltage alone.

Balanced Impeller and Volute Design

The supplied documentation also describes balanced impellers and a matched volute design intended to support stable operation. This is useful where the pump is expected to run for extended periods.

Fiber is one of the few materials that punishes a badly shaped impeller passage more than almost anything else. It is worth checking that detail before checking the flow rate.
