QDX Small Submersible Pumps

QX6-32-1.5S Stainless Pump for Pharmaceutical and Beverage Plants

Name: QX6-32-1.5S Stainless Pump for Pharmaceutical and Beverage Plants
Brand: Haquan
SKU: QX6-32-1.5S

Model: QX6-32-1.5S

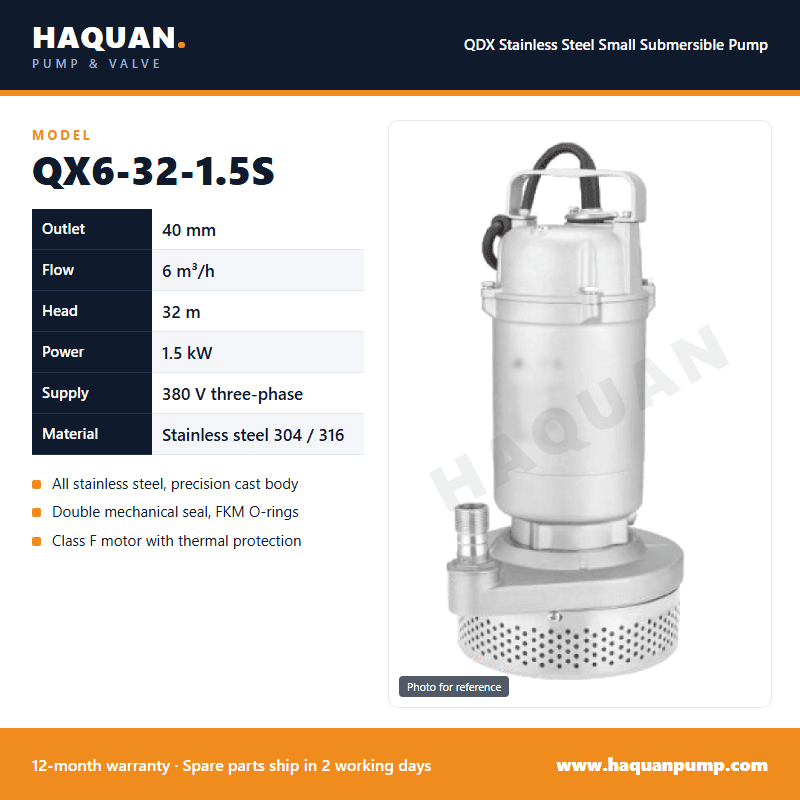

QX6-32-1.5S: 6 m³/h at 32 m, 1.5 kW, 380 V, 40 mm outlet. A stainless submersible pump for utility water in drug and drinks plants.

Specifications

Flow Rate	6m³/h
Head	32m
Power	1.5kW
Inlet / Outlet Diameter	40mm
Material	Stainless steel 304 / 316

Inquire About This Product

12-month warranty
Spare parts ship in 2 working days
Reply within 24 hours
Quality & after-sales

Not sure this pump fits your duty? Try the pump selector

Product Overview

Pharmaceutical and beverage plants are named among the uses for this series. In those plants the pump usually handles utility water: rinse water, cleaning solutions, water moved between holding tanks.

QX6-32-1.5S suits jobs where that water has to go up high or far: 6 m³/h at 32 m head on a 1.5 kW, 380 V motor, through a 40 mm outlet.

Choose 316 stainless when the water carries cleaning chemicals, and tell us what they are, because a PTFE mechanical seal may be the better option. Keep within 60 °C and fine solids only.

Please note this is a utility pump, not a sanitary pump for product contact. For product lines, your plant standards will call for a dedicated hygienic design.
