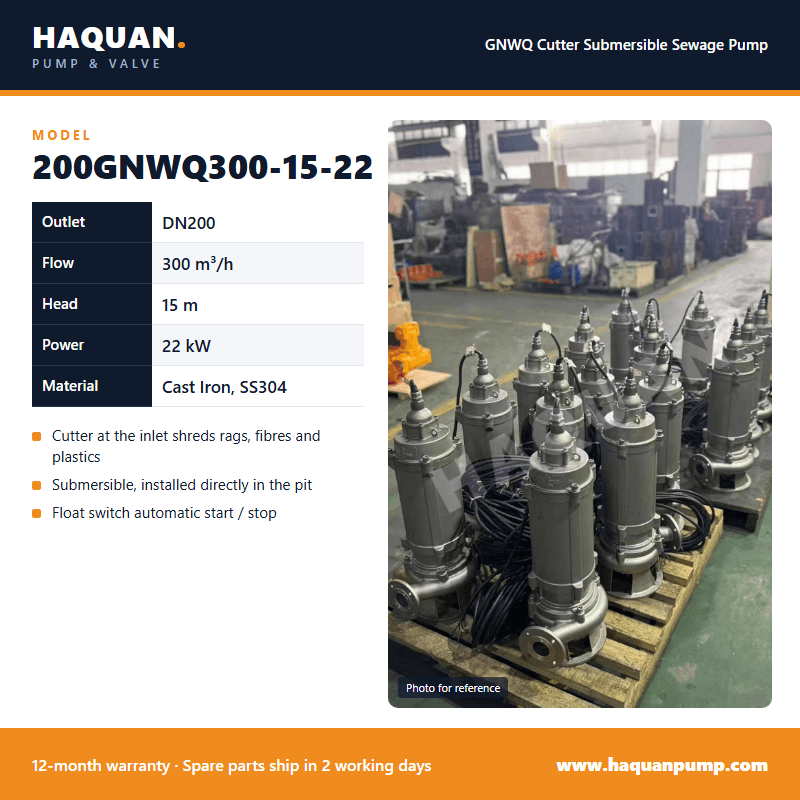

Model: 200GNWQ300-15-22
At the top of the range sits the 200GNWQ300-15-22 — a DN200 cutter moving up to 300 m³/h at 15 m head on a 22 kW motor. It is the pump you reach for when the volume is huge and the sewage is still ful…
| Flow Rate | 300m³/h |
|---|---|
| Head | 15m |
| Power | 22kW |
| Inlet / Outlet Diameter | 200mm |
| Material | Cast Iron,SS304 |
At the top of the range sits the 200GNWQ300-15-22 — a DN200 cutter moving up to 300 m³/h at 15 m head on a 22 kW motor. It is the pump you reach for when the volume is huge and the sewage is still full of rag, fibre and debris that would jam anything smaller.
GNWQ Submersible Sewage Cutter Pump Model Code Definition
| Model | 200GNWQ300-15-22 |
| Outlet | DN200 (8 in) |
| Max flow | 300 m³/h |
| Head | 15 m |
| Power | 22 kW |
| Voltage | 380 V (3-phase) |
| Cutter | Alloy spiral, ≥48 HRC |
Built for the largest municipal and industrial stations, it delivers full head and clog-free running at scale.
Applications: large municipal stations, heavy industry, storm and flood drainage, big livestock operations, regional sewage mains
Need the right GNWQ cutter pump for your flow, head and the waste you handle? Talk to the HAQUANPUMP team — your satisfaction is our greatest pursuit.
