Model: 150GNWQ200-15-15
The 150GNWQ200-15-15 is a large-bore cutter built for bulk transfer: 200 m³/h through a DN150 outlet at 15 m head, driven by a 15 kW motor. It moves enormous volumes of fibrous municipal and industria…
| Flow Rate | 200m³/h |
|---|---|
| Head | 15m |
| Power | 15kW |
| Inlet / Outlet Diameter | 150mm |
| Material | Cast Iron,SS304 |
The 150GNWQ200-15-15 is a large-bore cutter built for bulk transfer: 200 m³/h through a DN150 outlet at 15 m head, driven by a 15 kW motor. It moves enormous volumes of fibrous municipal and industrial sewage without choking.
| Model | 150GNWQ200-15-15 |
| Outlet | DN150 (6 in) |
| Max flow | 200 m³/h |
| Head | 15 m |
| Power | 15 kW |
| Voltage | 380 V (3-phase) |
| Cutter | Alloy spiral, ≥48 HRC |
This is main-station territory — the pump that keeps a whole district’s sewage moving.

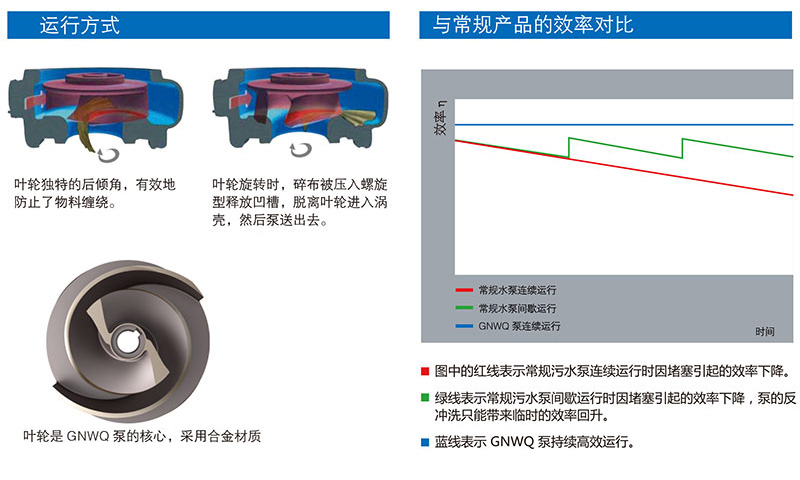

GNWQ Cutting Submersible Sewage Pump Impeller
Applications: district pumping stations, large municipal mains, industrial estates, large farms, flood and storm drainage
Thank you for visiting HAQUANPUMP, a professional sewage pump manufacturer. For GNWQ cutter pump selection, pricing or a datasheet, contact our engineers — we usually reply within 24 hours.
