HQANPump & Valve
QDX10-24-1.5S Stainless Submersible Pump for Seawater and Brine — QDX Small Submersible Pumps
QDX Small Submersible Pumps

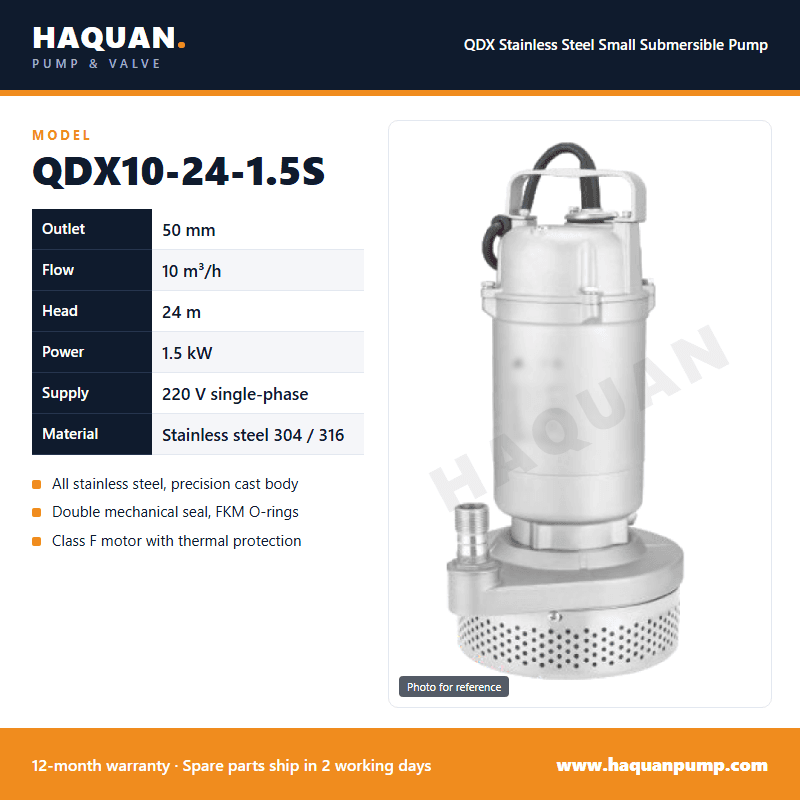

QDX10-24-1.5S Stainless Submersible Pump for Seawater and Brine

Model: QDX10-24-1.5S

QDX10-24-1.5S in 316 stainless for seawater, brine and salty aquaculture water: 10 m³/h at 24 m, 1.5 kW, 220 V, 50 mm outlet.

Specifications
Flow Rate10m³/h
Head24m
Power1.5kW
Inlet / Outlet Diameter50mm
MaterialStainless steel 304 / 316
Inquire About This Product

Not sure this pump fits your duty? Try the pump selector

Product Overview

Salt water ruins cast iron pumps quickly. QDX10-24-1.5S is built entirely from precision cast stainless steel, and in 316 grade it is suited to seawater and brine; the manual gives a pH range of 2 to 13 for 316.

Hydraulically it gives 10 m³/h at 24 m head from a 1.5 kW, 220 V motor, through a 50 mm outlet. That covers filling tanks in a fish farm, moving brine between ponds or supplying seawater to a process.

When you order for salt water

  • State that it is seawater or brine, so we supply 316 stainless rather than 304
  • Ask for the corrosion-resistant cable if the cable will stay in salt water or salt spray
  • Rinse the pump with fresh water when you lift it out for storage

The seals are fluororubber (double-end mechanical seal plus radial O-rings). A PTFE mechanical seal is available if the liquid also contains chemicals.

Keep within the usual limits: 5 m maximum depth, 60 °C maximum, fine solids only.

Typical Applications

  • seawater and brine transfer
  • marine aquaculture
  • salt water tanks
  • coastal sites
