WQK10-12QG Sewage Pump System – Setting Up for Reliable Operation

Building a sewage pump system isn’t just about buying a pump and dropping it in a hole. You need to think about piping, electrical protection, and maintenance access. The WQK10-12QG is a solid choice for the pump itself — 10 m³/h flow, 12 meters head, 1.1 kW — but the system around it matters just as much.

Putting Together the System

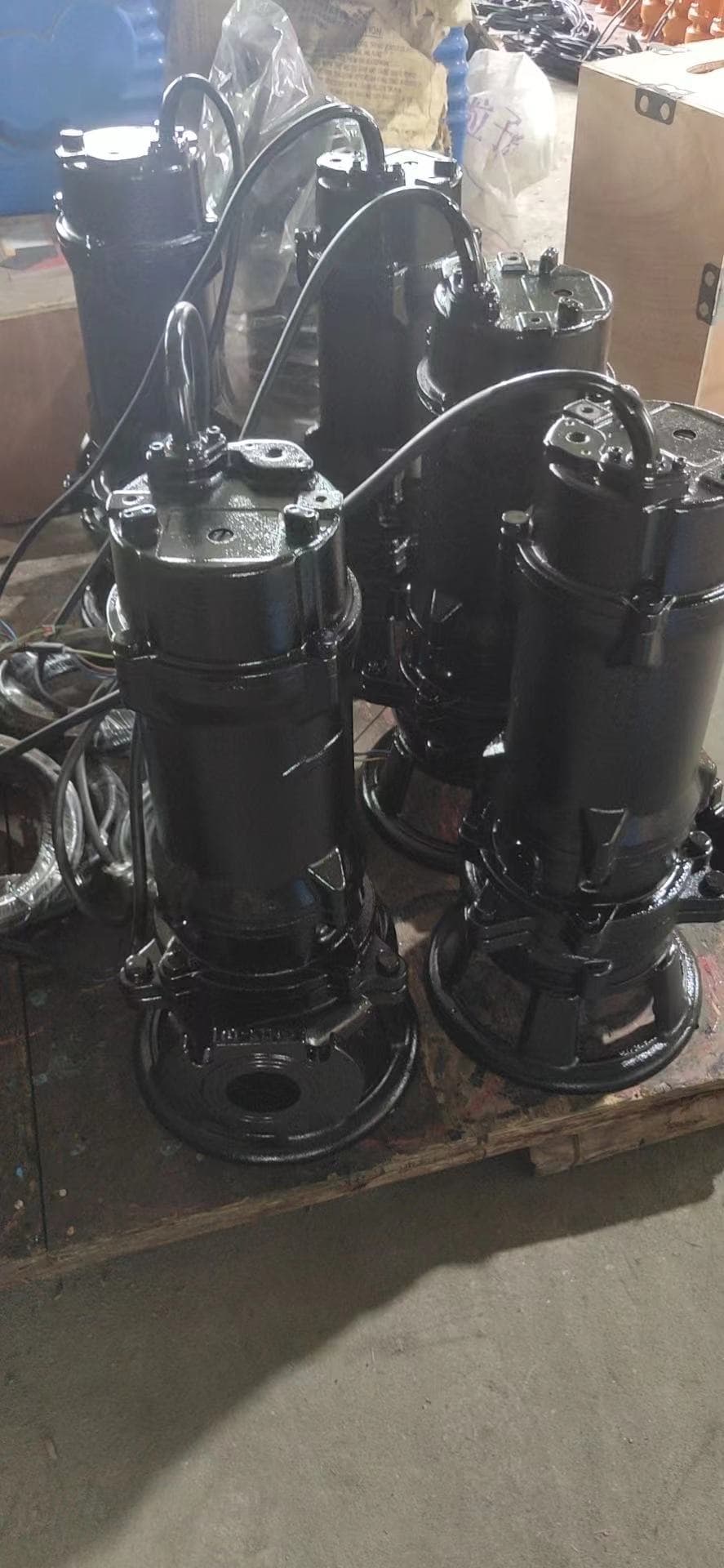

First, the pump. The WQK10-12QG has a 40 mm outlet, so your discharge pipe should match or step up slightly to reduce friction loss. Use a non-return valve to prevent backflow when the pump stops.
Second, electrical. This pump runs on 380V three-phase. You need a proper starter with overload protection. Don’t skip the residual current device — it’s not optional.
Third, the pit. The pump needs to sit on a flat, stable surface. If the bottom of the pit is muddy, put a concrete pad down. Make sure the pump is fully submerged before starting.

System Checklist

Component	Requirement
Pump	WQK10-12QG
Discharge pipe	40 mm minimum
Non-return valve	Yes
Electrical protection	RCD + overload relay
Lifting chain	Required for maintenance

One Thing People Forget
Plan for pulling the pump out. Sewage pumps need occasional inspection and cleaning. Install guide rails or at least leave a rope attached to the lifting handle. Trust me, you don’t want to be fishing around in a dark wet well trying to grab a slippery pump.

Applications Summary:​
pump system design, sewage lift station, wastewater system, submersible installation, pit pumping
