Model: WQ/QW
WQ and QW are common designations for non-clogging submersible sewage pumps. Learn the practical difference in installation and selection.
| Flow Rate | 7-2650m³/h |
|---|---|
| Head | 7 – 60m |
| Power | 0.55-250kW |
| Inlet / Outlet Diameter | 25-500mm |
| Material | Cast Iron,SS304，SS316L |
Buyers searching for a submersible sewage pump often see the letters WQ and QW in Chinese pump models. These designations can look like two completely different pump technologies, but the supplied technical material explains that the hydraulic structures are broadly similar.
In the referenced terminology, WQ is commonly associated with a fixed submersible sewage pump installation, while QW is associated with a mobile installation. Overseas buyers may simply refer to both as submersible sewage pumps and focus on the actual hydraulic and mechanical specification.
The important point is that the model code should not replace a technical review. The pump needs to be selected by flow, head, discharge diameter, motor power, liquid characteristics and installation arrangement. A model number such as 40QW(WQ)15-30-2.2 indicates a 40 mm outlet, 15 m³/h flow, 30 m head and 2.2 kW motor in the example described by the supplied documentation.

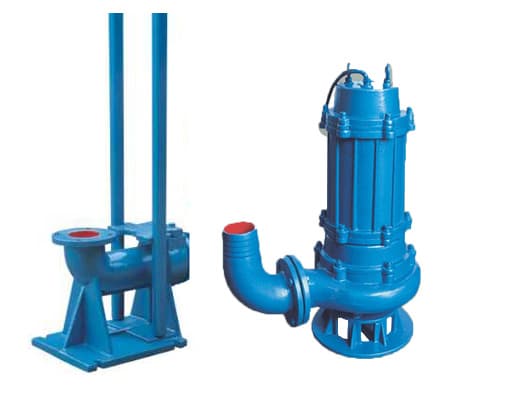

Both fixed and mobile installations can be useful. A fixed automatic coupling system uses guide rails and is convenient for permanent sewage stations. A mobile free-installation arrangement can use a support and flexible hose, making it practical for temporary pumping, emergency drainage and maintenance.
The hydraulic side remains focused on non-clogging wastewater service. Single-channel or twin-channel impellers provide an open passage intended to move solids and long fibers while reducing wrapping and blockage. The source material also describes balanced impellers and matched volute passages for stable operation.
Protection features can be added regardless of the installation approach. Leakage detection in the oil chamber, thermal protection in the motor winding and an automatic control cabinet can help protect the pump. Float switches can provide automatic level-based operation.
For export orders, electrical requirements should be stated clearly. A 415 V, 50 Hz motor configuration can be customized when required. The selected motor power and control system still need to match the pump duty and local electrical conditions.
Ask about the duty point before asking which letter is on the nameplate. It tells you more.
