Model: WQ/QW
Explore submersible sewage pumps for municipal wastewater, with anti-clogging flow passages, automatic protection and flexible installation options.
| Flow Rate | 7-2650m³/h |
|---|---|
| Head | 7 – 60m |
| Power | 0.55-250kW |
| Inlet / Outlet Diameter | 25-500mm |
| Material | Cast Iron,SS304，SS316L |
Municipal wastewater rarely behaves like clean water. Sewage can contain fibers, rags, suspended solids and other debris that quickly exposes the weak points of an ordinary centrifugal pump. A properly selected submersible sewage pump is designed around that reality, allowing the pump to work directly in the wet well while moving contaminated water through a large, carefully shaped hydraulic passage.

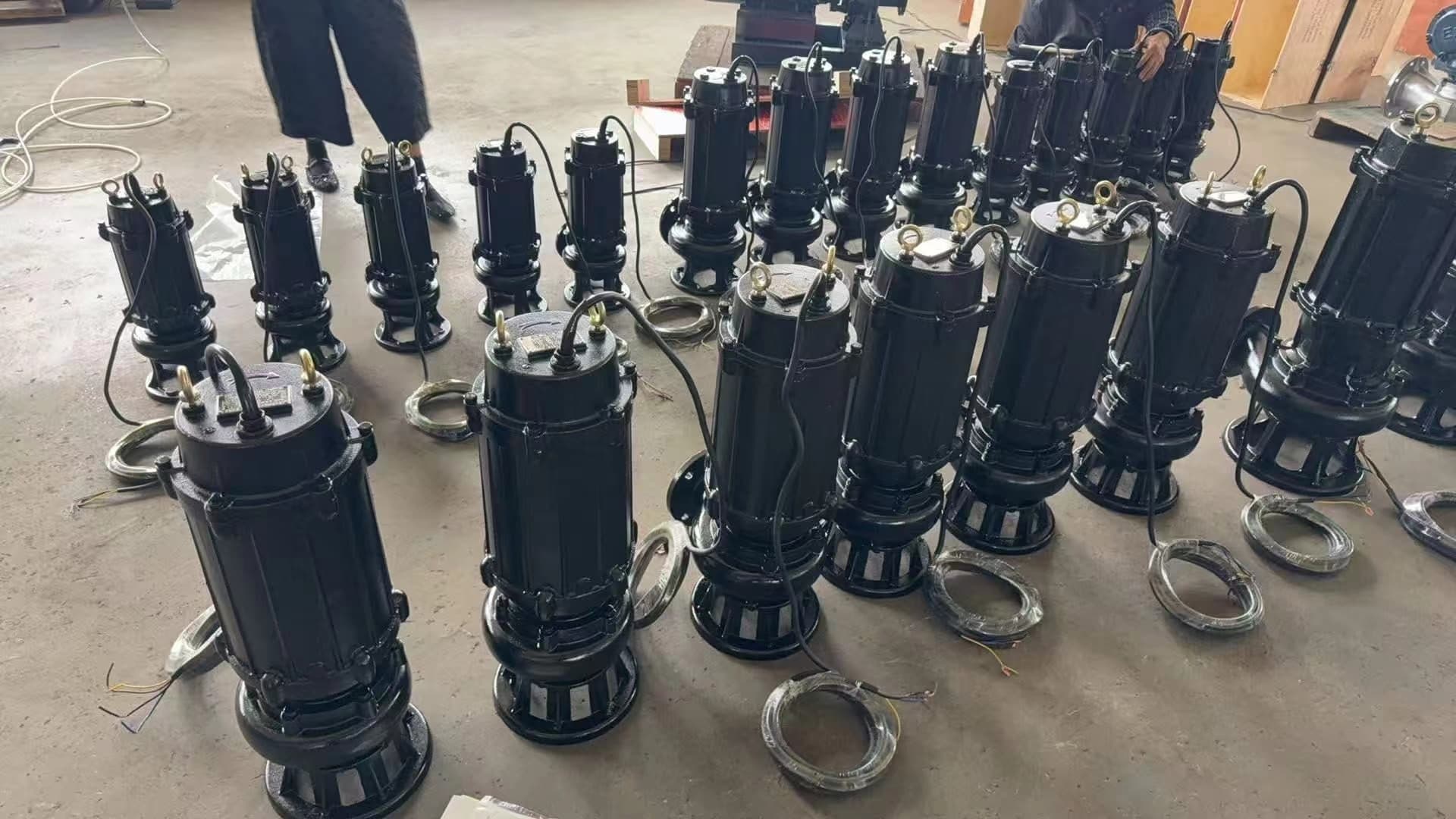

For municipal projects, the WQ/QW type non-clogging submersible sewage pump is a practical configuration because the pump and motor form a compact integrated unit. The source specifications describe single-channel or twin-channel impellers with good solids-passing capability. Depending on the model, the hydraulic design can pass fibrous material up to about five times the pump passage size and solid particles of roughly half the pump inlet diameter. Actual allowable solids size should always be checked against the selected model.
Installation is another reason these pumps are widely used in sewage stations. A fixed automatic coupling arrangement can allow the pump to be lowered along guide rails and connected without requiring personnel to enter the wet well for routine removal. A mobile installation is also available for temporary pumping, maintenance work or emergency drainage. This flexibility can be useful when a project has changing operating conditions.
Protection features are equally important in wastewater service. The documented design can include a leakage sensor in the oil chamber and thermal protection embedded in the motor winding. A suitable automatic control cabinet can monitor leakage, phase loss, short circuit, overheating and motor overload. A float switch can also start and stop the pump according to the liquid level, reducing the need for continuous manual supervision.
For international projects, electrical requirements should be confirmed before production. The pump can be configured for 415 V, 50 Hz when this specification is required by the project, subject to final motor selection and confirmation of the duty point. Flow, head, discharge size, liquid temperature and solids characteristics should be supplied to the manufacturer so the pump can be matched correctly.
A good municipal sewage pump is more than a motor placed underwater. Treat flow and head as the starting point, then match the impeller passage, sealing and control arrangement to the sewage a particular station actually receives.
