On farms, the water is rarely clean. Field drainage, irrigation channels and effluent ponds carry straw, weed, root and organic debris that block ordinary pumps fast. GNWQ cutter pumps shred that vege…
| Flow Rate | 7 – 950m³/h |
|---|---|
| Head | 7-55m |
| Power | 0.75 – 90kW |
| Inlet / Outlet Diameter | 50 – 300mm |
| Material | Cast Iron,SS304 |
On farms, the water is rarely clean. Field drainage, irrigation channels and effluent ponds carry straw, weed, root and organic debris that block ordinary pumps fast. GNWQ cutter pumps shred that vegetable matter on intake, so they keep moving water for drainage and irrigation without constant unclogging.
Higher-flow, low-head models such as the 80GNWQ35-12-2.2 or 100GNWQ100-15-7.5 suit the large volumes and modest lift typical of agricultural sites.

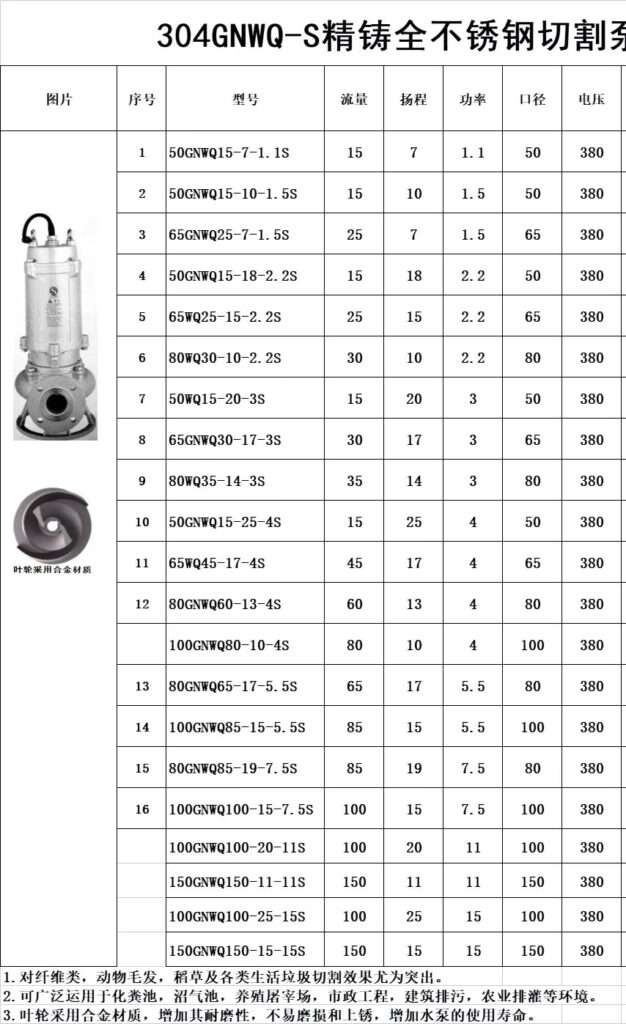

GNWQ Series Grinder Sewage Pump Models and Technical Parameters
Applications: farmland drainage, irrigation transfer, effluent ponds, aquaculture, greenhouse and nursery water, rural flood pumping
Need the right GNWQ cutter pump for your flow, head and the waste you handle? Talk to the HAQUANPUMP team — your satisfaction is our greatest pursuit.
GNWQ Cutter Submersible Sewage PumpThe 100GNWQ100-25-15S is a precision-cast SS304 cutter sewage pump for chemical plants needing both corrosion resistance and a tall lift — 100 m³/h at 25 m head, 15 kW.
GNWQ Cutter Submersible Sewage PumpThe 150GNWQ150-11-11S is a precision-cast SS304 cutter sewage pump for desalination plants and coastal works — high-volume, low-head handling of brine-laden effluent. 150 m³/h at 11 m head, 11 kW.
GNWQ Cutter Submersible Sewage PumpThe 100GNWQ100-20-11S is a precision-cast SS304 cutter sewage pump for large corrosive process duties — 100 m³/h at 20 m head, combining chemical resistance, volume and lift. 11 kW.
