Few fluids are harder on a pump than farm and slaughterhouse effluent: dense with bedding straw, hair, tissue and manure. GNWQ cutter pumps are made for this world. Fit the special livestock cutter di…
| Flow Rate | 7 – 950m³/h |
|---|---|
| Head | 7-55m |
| Power | 0.75 – 90kW |
| Inlet / Outlet Diameter | 50 – 300mm |
| Material | Cast Iron,SS304 |
Few fluids are harder on a pump than farm and slaughterhouse effluent: dense with bedding straw, hair, tissue and manure. GNWQ cutter pumps are made for this world. Fit the special livestock cutter disc and the pump shreds the fibrous load, then moves it — perfect for manure pits, slaughterhouse washdown and de-sludging biogas tanks.
Because the alloy cutter and stainless hardware resist wear and corrosion, the pump keeps working in aggressive organic effluent where ordinary units seize or rust out.
Applications: livestock and poultry farms, slaughterhouses, biogas-tank de-sludging, manure pits, aquaculture, agricultural effluentHAQUANPUMP builds the full GNWQ cutter-pump range in-house. Send us your duty point and we’ll recommend the exact model, cutter disc and materials for the job

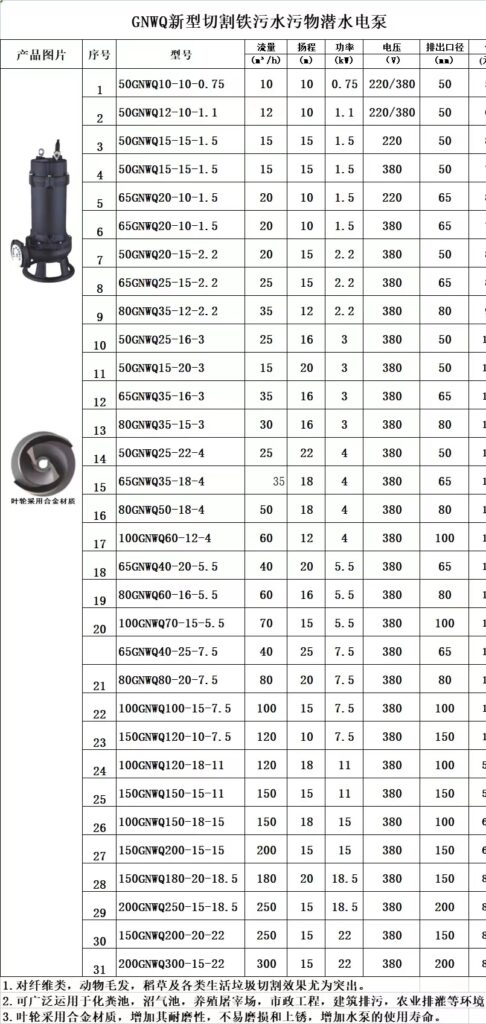

GNWQ Series Grinder Sewage Pump Models and Technical Parameters
GNWQ Cutter Submersible Sewage PumpThe 100GNWQ100-25-15S is a precision-cast SS304 cutter sewage pump for chemical plants needing both corrosion resistance and a tall lift — 100 m³/h at 25 m head, 15 kW.
GNWQ Cutter Submersible Sewage PumpThe 150GNWQ150-11-11S is a precision-cast SS304 cutter sewage pump for desalination plants and coastal works — high-volume, low-head handling of brine-laden effluent. 150 m³/h at 11 m head, 11 kW.
GNWQ Cutter Submersible Sewage PumpThe 100GNWQ100-20-11S is a precision-cast SS304 cutter sewage pump for large corrosive process duties — 100 m³/h at 20 m head, combining chemical resistance, volume and lift. 11 kW.
